Sedimentation

DWTP

Settling is the process in which the densest particles (chemically formed flocs) of water are separated essentially by the effect of gravity. There are different types of settling basins or sedimentation tanks, namely:

Conventional sedimentation tanks

It consists of a tank, which is divided into an inlet zone that is where the water is distributed evenly in the system, a sedimentation zone that is the place where the solid particles begin to fall to the bottom due to the action of gravity, a sludge area that is where the by-product of the decantation process is deposited and an outlet area where the clarified water is collected.

Sedimentación (1)

High-rate sedimentation tanks

It is a structure that is composed of a shallow tank, in which modules that can be circular, square, hexagonal, octagonal, or flat plates, among others, are arranged, in order to generate a greater treatment capacity of water in a shorter retention time than in conventional settling tanks.

Sedimentación (2)

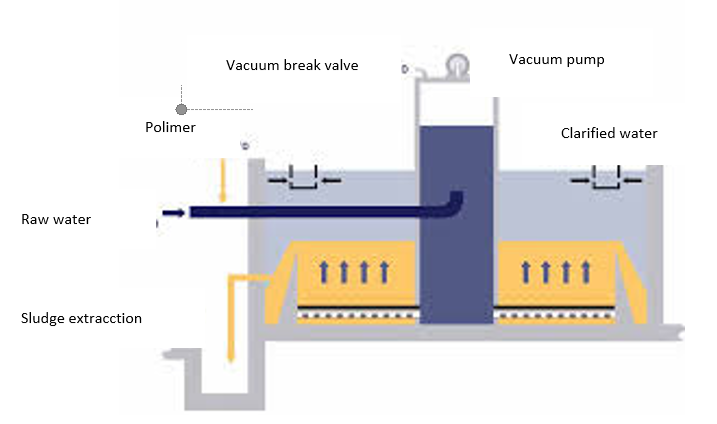

Decantation with sludge blanket units

This type of settler permits maintaining a blanket of suspended sludge either hydraulically or mechanically. The coagulated —flocculated water arrives from the bottom of the tank and lows through this sludge blanket to emerge clarified at the top of the structure.

Sedimentación (3)

Bibliography

  1. Titulo C Sistemas de potabilización. Recuperado el 18 de Julio de 2020 Ministerío de vivienda, Ciudad y Territorío 2020

    This title C establishes the conditions required for the conception and development of water purification systems. It also guides the planning, design, construction, technical supervision, operation, maintenance and monitoring of the operation of these systems and their components.

  2. Teoría y práctica de la purificación del agua ACODAL 2000

    1. BASIC CONCEPTS ON WATER CHEMISTRY - 2. THEORY OF WATER COAGULATION - 3. DESIGN OF MIXERS AND FLOCULATORS - 4. CONTROL OF THE COAGULATION-FLOCULATION PROCESS - 5. THEORY OF WATER SEDIMENTATION - 6. DESIGN OF SEDIMENTATIONS - 7. CONTROL OF THE SEDIMENTATION PROCESS - - VOLUME 2: - 8. THEORY OF WATER FILTRATION - 9. DESIGN OF FILTRATION UNITS - 10. CONTROL OF THE FILTRATION PROCESS - 11. THEORY OF WATER DISINFECTION - 12. DESIGN OF CHLORINATION STATIONS - 13. EXAMPLE OF DESIGN OF A WATER POTABILIZATION PLANT
